AT-SP3
Showcase pole spot - 5w
Atom Pole is a minimalistic modular system. Its unique, flexible design and width range accessories makes the Atom pole system suitable both as a pole system and light bar.
The Atom pole spot system is adjustable spotlight with jack stick adapter for tool-free installation on the 24V low voltage Atom pole track. The spots structure is based on aluminium. The aluminium gives the spotlight a very good passive dissipation, which provide a very long lifespan. Internal there is a DC/DC driver circuit with an integrated dimmable function. The swivel joints allow the spot to rotate 360° and tilted by 90°. The high efficiency optic, which is positioned deep in the spot, provide a high level of visual comfort and low glare.
LED
5W 428 lm - light source value
5.6W 334 lm - system values
Luminous Efficiency (system value): 60 lm/W
2700K, 3000K, 4000K or 5700K
CRI 90
Dimmable Electronic Triac Driver
Optic: S - Spot 20°, 30° or 40°
Adjustability: Rotatable & Tiltable
Material: Die-casted Aluminium

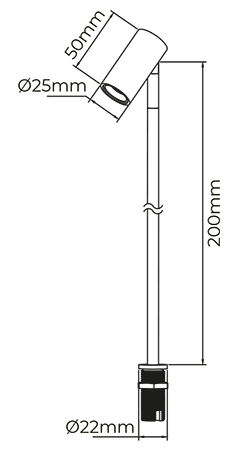

Size: ⌀25 x 55 MM
Environment: Indoor
DESIGNED BY ERIK PADKJAER LARSEN
